CMS Central Monitoring

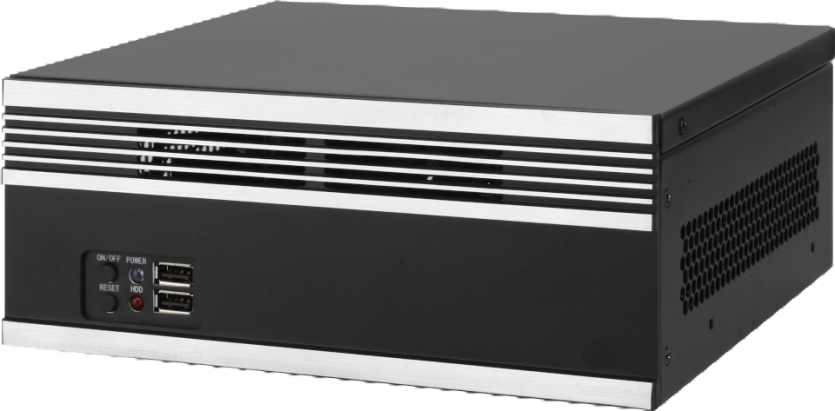

CMS Station H
Access up to 25,600 cameras (256 x 100ch)
Simultaneous monitoring of up to 32 Full HD videos
Efficient management with multistreaming support
Efficient management due to dual monitoring support
Event-based live monitoring support
E-MAP function allows camera position to be displayed on the map and corresponding video
Remote search, remote backup (manual, schedule)
Event-driven intelligent response programmability
Multi-site automatic / manual warning sound transmission (broadcast) function
Change camera settings
System health monitoring (Real Time Health Check)
PTZ control available
VNC connection support for remote configuration
EM-NDS Series Video Wall System Control
CONTACT US
Simultaneous monitoring of up to 32 Full HD videos
Efficient management with multistreaming support
Efficient management due to dual monitoring support
Event-based live monitoring support
E-MAP function allows camera position to be displayed on the map and corresponding video
Remote search, remote backup (manual, schedule)
Event-driven intelligent response programmability
Multi-site automatic / manual warning sound transmission (broadcast) function
Change camera settings
System health monitoring (Real Time Health Check)
PTZ control available
VNC connection support for remote configuration
EM-NDS Series Video Wall System Control
- Specifications
- Download
CMS Central Monitoring
| CMS Version(Default) | CMS Basic Version(8 host) |
|---|---|
| CMS Version(Options) | CMS Standard Version(16 host), CMS professional Version(64 host), CMS Enterprise Version(256 host) |
| Operating System | Ubuntu Linux with OpenGL and X-Windows |
| CPU | Intel Daul Core 1.8GHz |
| RAM | DDR3/4 16G RAM(8G*2EA) |
| VGA | Integrated Graphic |
| Disk | M.2 SSD 32G |
| Monitor Output | 1xHDMI / 1xVGA |
| Mode | Various display mode and full screen mode like 1x1, 1x2, 2x1, 2x2, 3x3 |
| Performance | 12M(5CH/150fsp), 8M(8CH/240fps), 5M(12CH/360fps), 1080P(32CH/960fps) |
| Search / Replay Method | Date / Time Calendar Search, Individual / Channel Bundle Search, Event Search |
| Replay Control | Forward direction (high speed: x1 ~ x32), Step forward / backward |
| Backup Mode | Video, Still Image |
| Backup File Format | MP4, JPG |
| Video Wall | EMSTONE IP Video Wall System Setup / Control |
| Event Type | Motion Detection, Sensor, Relay, Disk Failure, Camera Signal Loss / Recovery, Emergency Bell, License Plate Recognition, POS, Elevator CRT, Fire / Smoke Detection, Abnormal Sound Detection, Thermal Imaging Camera |
| Event Action | Alarm Digital-out, Pop-up Camera, Alarm Sound, Warning Message, Preset Control, IP Video Wall Control (Video / Image / Text Output Control, Preset) |
| Network Interface | 10/100/1000 Base-Tx Ethernet (RJ45) - 1ea |
| Bandwidth Control | Automatic, Manual |
| Operating Temp / Humidity | +5℃~+40℃ / 0% ~ 90% |
| Power Supply / Current | DC19V 3.42A |
| Dimension (W x H x D) | 224(W) x 88.8(H) x 200(D) mm |
| Weight | Approx. 2.7 kg |
